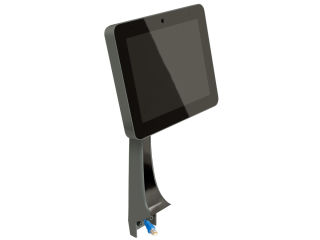

[Image for 1502B]
Two-way video interface monitor
2-Way Video Monitor for 1500B
Model 1502B - New

[]
  • Easy tilt for camera angle adjustment
  • Large, 4:3 aspect LCD screen
  • 45% larger screen area
  • Updated styling, concealed wiring
  • Video camera calibrated for indoor lighting
  • LED backlight display requires less power
  • Height adjusts from 12 inches to 15 inches tall

Categories: Intercom, Counter Station, Intercom Accessories


[Installed]
Installed
[Installed rear]
Installed rear

The 1502B offers a 480i LCD screen for detailed, life-like visuals, with an LED backlight that uses less power. Elegant styling looks great in bank and pharmacy environments, even from the back. The camera performs well in challenging indoor lighting scenarios, even with direct glare from fluorescent lights, presenting a pleasing image to customers.  Adjust the height of the video screen for use on a high counter or a low desk, and the tilt can be adjusted with a touch to aim the camera so that the user's face is well positioned. The camera is located close to the video screen for natural-looking video communications where eye contact is important.

Upgrading an Audio-Only System
Audio counter stations can easily be upgraded to an audio/video counter station with a Model 1502B 2-way video monitor. The 1502B connects to 1500A or 1500B via one Cat 5 cable. Note: the 1502B has a third mounting screw on the bottom that is not used when installed on 1500A.


Specifications

Counter station dimensions with video interface:
  • Height, highest: 14.75" (375mm)
  • Height, low: 12.32" (313mm)
  • Depth: 8.66" (220mm)
  • Width: 9.5" (240mm)

Monitor:
  • Resolution: 720 x 480 pixels
  • Screen size (diagonal) 8 inches

Power:
  • Input Power Requirement: 12 volts DC at 1 amp (via Cat 5 cable)

Downloads
