General Description

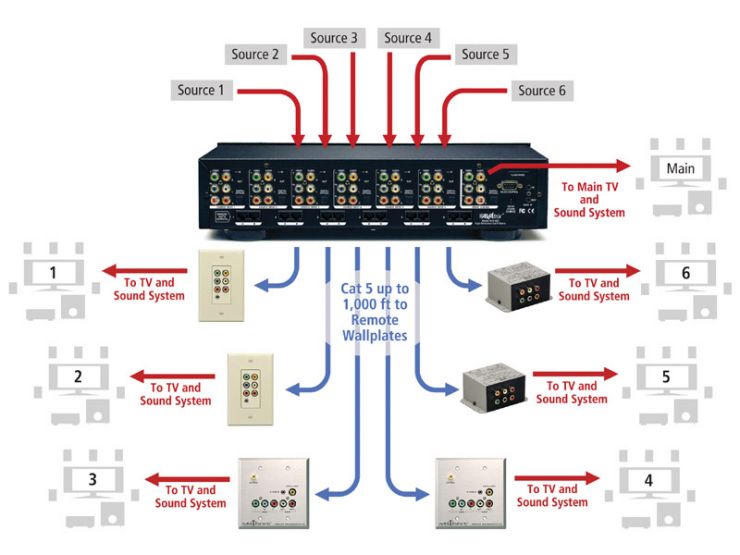

The AVAtrix provides component video connection of sources, and distributes HD signals up to 1,000 feet away to convenient wallplates mounted wherever televisions are to be located.

• 6-in x 7-out matrix router; any of six sources may be routed to any remote output, or the local output
• System is expandable up to 36 remote wallplate outputs
• Resolutions: any, up to 1080p
• Maximum Distribution Range: 1,000 feet over Cat 5e/6 cable
• Rack mountable with included 2U rack-mount ears.

Source Inputs (up to six sources)

• Component video (YPbPr)

• Digital audio (coaxial and optical)
• Analog stereo audio (L/R)

Audio and Video Outputs (full matrix functionality)

• Local Output (x1): component video, digital audio (coaxial and optical) and analog stereo audio
• Remote Zone Outputs (x6): component video, digital audio (coaxial and optical) and analog stereo audio
• Remote outputs connect to each wallplate/receiver via two Cat 5e/6 cables
• Remote wallplate/receivers powered over Cat 5 bus - no power connection at zone locations

Homeowners - The AVAtrix is perfect for sending your favorite media from a central location to anywhere around your home. Simply plug your sources into the AVAtrix, run the Cat 5 cables to where you want to watch TV, connect the wallplates, and select what you'd like to watch. It keeps electronic clutter out of sight while delivering pristine high definition anywhere you want it. Note: While the AVAtrix is ideal for new construction or an existing home, it does require special knowledge and tools to install. We suggest you contact a local custom home installation specialist. Many installation specialists are members of the Custom Electronic Design & Installation Association and can be located through the CEDIA website.

Integrators - The AVAtrix is your ticket to quicker, simpler, headache-free installations. Two Cat 5 cables are all you need - they do the work of six coaxial cable runs plus provide an IR pathway for source control. Balanced line technology allows for superior noise rejection and excellent picture quality. The AVX-562 is perfectly suited for home use, restaurant HDTV distribution, digital signage, even retail demonstrations of HDTV and home theater.


Resolutions (Component Video)

• High definition (720p, 1080i, 1080p)
• Standard definitions (480i, 480p, 576i, 576p)

Signal Formats

• Source inputs include YPbPr, digital audio (optical and coaxial) and analog audio
• Local outputs include YPbPr, digital audio (optical and coaxial) and analog audio
• Remote Cat 5 Receiver outputs include YPbPr, digital audio and analog audio

Routing Control Methods

• Front panel controls
• Front panel IR
• IR input on rear panel
• RS-232 connection on rear panel
• IR receivers connected to remote Wallplates (IR receivers and Cat 5 Receivers not included)

IR Router
The AVAtrix includes an IR routing system that is unique in the industry. The new AVX-562 offers individual IR outputs for each source. This routing system allows IR signals returned from a wallplate to control only the source currently routed to that zone. This design is vital for installations including multiple cable or satellite receivers of the same brand. The AVAtrix also includes a Main IR Output for all signals returned from the remote zones.


System Contents

• (1) Model AVX-562 Matrix Router

• (1) Model 1105BK IR remote control
• (1) Internal bus connection cable (pre-installed)
• (1) 18V DC power adapter

Optional Accessories

• Wallplate/receiver alternatives include Model 9878 shallow-depth, dual-gang wallplate, Model 9879 Decora-style, single-gang wallplate, and the Model 9880 on-wall or in-wall Cat 5 receiver. View a Cat 5 receiver comparison table.
• Audio Interface for integration with whole house audio systems Model 1172
• Matrix Router Expander adds six additional Cat 5 outputs Model 1176
• IR Injector to enable in-bound or out-bound traffic on the AVAtrix Cat 5 IR pathway Model 1109

Product Dimensions (inches, H-W-D)

• AVAtrix head end unit (AVX-562): 3.625 x 16.625 x 9.75 - add 0.5 to height to include feet
• Wallplate receiver dimensions: see detail pages Model 9878, Model 9879, Model 9880
